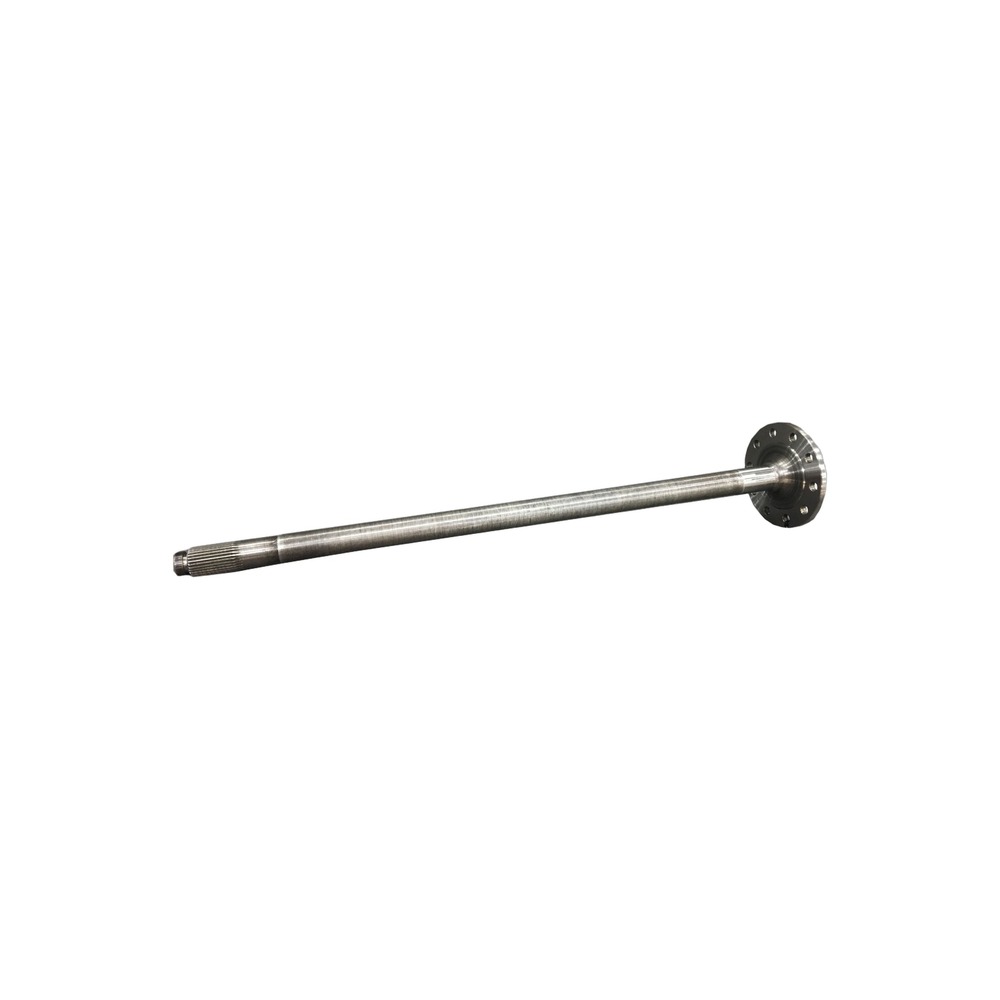

3969285 New Rear Axle Shaft 1968-1972 Camaro/Chevelle 30 Spline
SKU
447-913
Price
$140.00
Core Charge
$0.00
Description
Features and Benefits
Direct Replacement for Proper Fit
Installation
Installation Instructions
INS_FORM.docx
(171.9 KB)
Warranty
Notes
Brand: US Powertrain
1968-1972 Chevrolet Chevelle
1970 Chevrolet Camaro
1970 Pontiac Firebird
1970-1972 Chevrolet Monte Carlo
Drive Axle Shaft
New Rear Axle Shaft for 1968-1972 Chevelle/Camaro
Direct Replacement for Proper Fit
Inboard Spline Quantity: 30
Inner Shaft Length: 30 1/16"
Shaft Material: Steel
Wheel Bolt Pattern Size: 5 Lug
Interchange:
Applications:
1968-1972 Chevrolet Chevelle
1970 Chevrolet Camaro
1970 Pontiac Firebird
1970-1972 Chevrolet Monte Carlo
Drive Axle Shaft
New Rear Axle Shaft for 1968-1972 Chevelle/Camaro
Direct Replacement for Proper Fit
Inboard Spline Quantity: 30
Inner Shaft Length: 30 1/16"
Shaft Material: Steel
Wheel Bolt Pattern Size: 5 Lug
Interchange:
- General Motors: 3969285
Applications:
- 1968-1972 Chevrolet Chevelle - PartType: Drive Axle Shaft - Position: Rear
- 1970-1970 Chevrolet Camaro - PartType: Drive Axle Shaft - Position: Rear
- 1970-1972 Chevrolet Monte Carlo - PartType: Drive Axle Shaft - Position: Rear
- 1970-1970 Pontiac Firebird - PartType: Drive Axle Shaft - Position: Rear
Core Charge
Core Charge
$0.00
Dimensions
Dimensions
42 × 8 × 8 in
Weight
20 lb
Fitment
Vehicle Fitment
1970 Chevrolet Camaro
1968 Chevrolet Chevelle
1969 Chevrolet Chevelle
1970 Chevrolet Chevelle
1971 Chevrolet Chevelle
1972 Chevrolet Chevelle
1970 Chevrolet Monte Carlo
1971 Chevrolet Monte Carlo
1972 Chevrolet Monte Carlo
1970 Pontiac Firebird
Fitment Qualifiers
with 30 Splines
Application Summary
1968-1972 Chevrolet Chevelle
1970 Chevrolet Camaro
1970 Pontiac Firebird
1970-1972 Chevrolet Monte Carlo
Specifications
Category
Driveline and Axles
Axle Shaft
Part Type
Brand
US Powertrain
Position
ABS Tone Ring Included
No
Axle Nut Included
No
Axle Shaft Seal Included
No
Bearing(s) Included
No
Brake Hardware Included
No
Grade Type
Regular
Inboard Spline Quantity
30
Inner Shaft Length
30 1/16"
Prop 65 - Long Label
This product may contain a chemical known to the state of California to cause cancer or birth defects. www.p65warnings.ca.gov
Prop 65 - Short Label
WARNING: Cancer – www.p65warnings.ca.gov
Prop 65 Y/N
Yes
Rust Resistant Coating
YES
Shaft Material
Steel
Wheel Bolt Pattern Size
5 Lug
Wheel Nuts Included
No
